Products / Rainscreen Systems

Plasmet PR rainscreens offer a high performance back ventilated façade designed to withstand the most extreme weather conditions for new buildings and refurbishments.

With a wide range of sizes, finishes, colours and fixing options the PR systems innovative range of façade panels, carrier systems and other proprietary substructures provides an attractive, long lasting, and cost effective method of providing weather protection to the the primary structure, while improving the aesthetical appearance of the building envelope.

All systems follow the guidelines for rainscreen cladding recommended by the Centre for Windows and Cladding Technology.

Please select from one of the tabs or use the navigation buttons below to find out more.

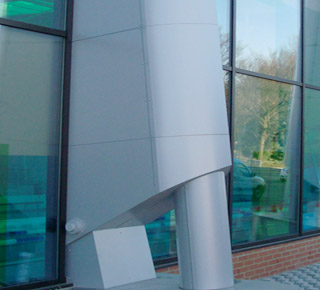

PR-100 Visible Fixed Rainscreen System

Description
Plasmet's PR-100 system has been developed as a straight forward cost effective façade solution whereby panels are visibily fixed directly to a simple carrier support system.

Support System
The carrier supports can be simple pre-formed top hat sections, angles, zed supports or other supportwork including timber batterns and Plasmet's RC-10 rainscreen carrier system. Carrier rails are attached to a system of fully adjustable cleats which provide an effective leveling system. Click here to view more on this system

Please click here to download specification for this product.

PR-100 Visible Fixed Rainscreen System

Materials and Finish
Available in various sizes, shapes and orientations, panels are manufactured in wide range of materials including:
  • 2.0mm/3.0mm Aluminium Polyester powder coating (PPC) by approved applicator to BS6496 1984
  • 2.0mm/3.0mm Aluminium Anodised, 25 micron minimum for external finish by approved applicator to BS3987 1991
  • 4.0mm A.C.M (aluminium composite material). Plasmet is a Reynobond approved fabricator
  • 1.2mm/1.5mm Stainless Steel natural, polished or patterned rigidised stainless steel
PR-200 Bracket Fixed Cassette Rainscreen System

Description
The PR-200 system is an economical façade system where panels are directly fitted to support rails through a sequence of fixing lugs which are secured to the side returns of the panel. An optional EPDM gasket (reference RG-20) may be applied to the joints during installation to conceal the fixings and enhance the asthetical appearance.

Support System
Similar to the PR-100 system, the carrier supports are simple pre-formed top hat sections, angles, zed supports or other supportwork including timber batterns. Carrier rails are attached to a system of fully adjustable cleats which provide an effective leveling system. Click here to view more on this system

Please click here to download specification for this system.

PR-200 Bracket Fixed Cassette Rainscreen System

Materials and Finish
Available in various sizes, shapes and orientations, panels are manufactured in wide range of materials including:
  • 2.0mm/3.0mm Aluminium Polyester powder coating (PPC) by approved applicator to BS6496 1984
  • 2.0mm/3.0mm Aluminium Anodised, 25 micron minimum for external finish by approved applicator to BS3987 1991
  • 4.0mm A.C.M (aluminium composite material). Plasmet is a Reynobond approved fabricator
  • 1.2mm/1.5mm Stainless Steel natural, polished or patterned rigidised stainless steel
PR-300 Recessed Cassette Rainscreen System

Description
Plasmet's PR-300 façade system offers the most economical and flexible alternative to a traditional hook-on rainscreen system. Similar to the PR-200 system, cassette panels are fixed through recessed joints directly fixed onto support rails using colour matched fixings, providing an effective weather shielding façade. Typical joint widths are set at either 15mm or 20mm in either wet or dry variations. An optional EPDM gasket may be applied to the joints after installation to conceal the fixings and enhance the asthetical appearance.

Support System
Support is provided using Plasmet's RC-10 rainscreen carrier system. A complete set of cleats provide an effective fixing and leveling system for cladding zones up to 300mm. Click here to view more on this system

Please click here to download specification for this system.

PR-300 Recessed Cassette Rainscreen System

Materials and Finish
Available in various sizes, shapes and orientations, panels are manufactured in wide range of materials including:
  • 2.0mm/3.0mm Aluminium Polyester powder coating (PPC) by approved applicator to BS6496 1984
  • 2.0mm/3.0mm Aluminium Anodised, 25 micron minimum for external finish by approved applicator to BS3987 1991
  • 4.0mm A.C.M (aluminium composite material). Plasmet is a Reynobond approved fabricator
  • 1.2mm/1.5mm Stainless Steel natural, polished or patterned rigidised stainless steel

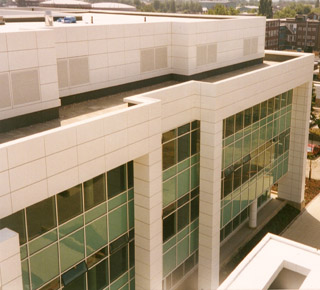

PR-400 Hook-On Ventilated Rainscreen System

Description
The PR-400 façade system is a complete drained and ventilated hook-on rainscreen system comprising of a series of baffle jointed rainscreen panels that hook onto a structural pinned carrier support frame. Panels are easily removed and replaced independently without interference to the rest of the façade. Typical joint widths are set between 10mm and 40mm.

Support System
Support is provided using Plasmet's RC-20 rainscreen carrier system. A complete set of cleats provide an effective fixing and leveling system for cladding zones up to 300mm. The system has been tested and certified using an independent UK testing facility. Click here to view more on this system

Please click here to download specification for this system.

PR-400 Hook-On Ventilated Rainscreen System

Materials and Finish
Available in various sizes, shapes and orientations, panels are manufactured in wide range of materials including:
  • 2.0mm/3.0mm Aluminium Polyester powder coating (PPC) by approved applicator to BS6496 1984
  • 2.0mm/3.0mm Aluminium Anodised, 25 micron minimum for external finish by approved applicator to BS3987 1991
  • 4.0mm A.C.M (aluminium composite material). Plasmet is a Reynobond approved fabricator
  • 1.2mm/1.5mm Stainless Steel natural, polished or patterned rigidised stainless steel
PR-500 Reverse Hook-On Ventilated Rainscreen System

Description
The PR-500 façade system has been developed as a secret fixed drained and ventilated hook-on rainscreen system. The integral structural pins are attached to the panel, allowing for secret fixing of the panels. Panels are designed to be easily removed and replaced independently without interference to the rest of the façade. Typical joint widths are set between 10mm and 40mm.

Support System
Support is provided using Plasmet's RC-30 rainscreen carrier system. A complete set of cleats provide an effective fixing and leveling system for cladding zones up to 300mm. The system has been tested and certified using an independent UK testing facility. Click here to view more on this system

Please click here to download specification for this system.

PR-500 Reverse Hook-On Ventilated Rainscreen System

Materials and Finish
Available in various sizes, shapes and orientations, panels are manufactured in wide range of materials including:
  • 2.0mm/3.0mm Aluminium Polyester powder coating (PPC) by approved applicator to BS6496 1984
  • 2.0mm/3.0mm Aluminium Anodised, 25 micron minimum for external finish by approved applicator to BS3987 1991
  • 4.0mm A.C.M (aluminium composite material). Plasmet is a Reynobond approved fabricator
  • 1.2mm/1.5mm Stainless Steel natural, polished or patterned rigidised stainless steel

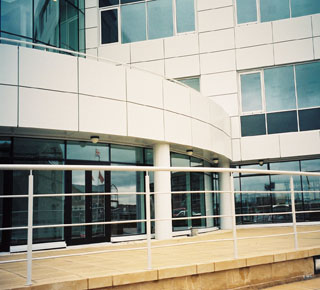

PR-600 Horizontal Fixed Rainscreen System

Description
Plasmet's PR-600 system provides façade that is simple and quick to install comprising of a series of panels that fix directly to a support frame. Panels are slotted into one another using the 'tonge and goove' extrusion and are designed to be easily removed and replaced independently without interference to the rest of the façade. Horizontal joints are fixed at 10, 20 or 50mm. Vertical joint widths are set between 10mm and 40mm.

Support System
Support is provided using Plasmet's RC-20 rainscreen carrier system or various pre-formed top hat sections. A complete set of cleats provide an effective fixing and leveling system for cladding zones up to 300mm. Click here to view more on this system

Please click here to download specification for this system.

PR-600 Horizontal Fixed Rainscreen System

Materials and Finish
Available in various sizes, shapes and orientations, panels are manufactured in wide range of materials including:
  • 2.0mm/3.0mm Aluminium Polyester powder coating (PPC) by approved applicator to BS6496 1984
  • 2.0mm/3.0mm Aluminium Anodised, 25 micron minimum for external finish by approved applicator to BS3987 1991
  • 4.0mm A.C.M (aluminium composite material). Plasmet is a Reynobond approved fabricator
  • 1.2mm/1.5mm Stainless Steel natural, polished or patterned rigidised stainless steel
PR-700 Interlocking Plank System

Description
Plasmet's PR-700 Interlocking plank system comprise of either pressed or extruded interlocking planks, secretly fixed to an aluminium support frame, secured by stainless steel connections to the existing building structure. Panels are interlocked into one another forming either a closed hairline or variable joint width upto 30mm.

Support System
Support is provided using a wide range of systems including Plasmet's RC45 extrusions or various pre-formed top hat sections. A complete set of cleats provide an effective fixing and leveling system for cladding zones up to 300mm.

Click here to view extruded plank system

PR-700 Interlocking Plank System

Materials and Finish
Extruded planks are available in various lengths upto 5 metres, in a wide range of polyester powder coated finishes. Pressed planks are manufactured in a wide variation of sizes, shapes and orientations. Materials, available include:
  • Upto 2.0mm Pre-Coated Aluminium in polyester, PVDF and Duragloss finishes
  • Stucco embossed aluminium
  • Upto 1.2mm Pre-Coated Plastisol, PVDF, HPS200
  • Upto 1.5mm Zinc
  • Stainless Steel. Available as natural, polished or patterned finish
  • Copper including classic, bronze, gold and prepatinated

The PR systems are configurable to cover many applications. However, please contact our technical team for any unlisted requirements, where they are ready to assist you with any questions related to your project, including calculation notes, CAD drawings and material optimization required to reduce scraps and costs
