• Liverpool One Liverpool One
    Anodised aluminium interlocking soffit tray system and secret fix copings over canopied walkway at basement, ground and upper levels in main shopping complex.
  • Emirates Stadium Emirates Stadium, London
    Mill finish aluminium interlocking soffit tray and bullnose fascia system to pitch side and external elevations.
  • Queens Hospital Queens Hospital, Romford
    Polyester powder coated aluminium fascias, soffits, secret fix coping and louvres to external elevations.
  • Bury, The Rock Bury, The Rock
    Aluminium shingles, curved copings, ACM fascias and column casings
  • Victoria Gate Victoria Gate, Leeds
    Plasmet PR-600 tongue and groove aluminium rainscreen system with 20mm vertical and horizontal joints.
  • Albion Riverside Albion Riverside, London
    360 linear metres of facetted powder coated aluminium bullnose fascias with secret fix joint
Products / Shingle Systems

Plasmet vertical and horizontal shingle façade systems offer designers and specifiers an economic advantage in façade design. Available in a wide variety of materials, finishes and shapes including rectangular, rhomboid and diamond, shingles are fixed directly and interlocked with each other.

All shingles are designed with a series of return folds on all 4 sides, with reverse folds along two edges which allow them to overlap and grip the flanges of adjacent shingles. Available as either left or right hand the position of the return flanges means the shingles do not require installing in a certain order. Transitional strips provide the facility to change direction of lay and provide a natural 'break point'.

All folds and notches are processed at the factory which ensure corner overlaps are correct. Thicknesses vary between 0.5mm to 1.2mm available from the following materials:

  • Aluminium (mill finish, pre-coat, embossed)
  • Zinc
  • Copper
  • Stainless steel

Please select from one of the tabs or use the navigation buttons below to find out more.

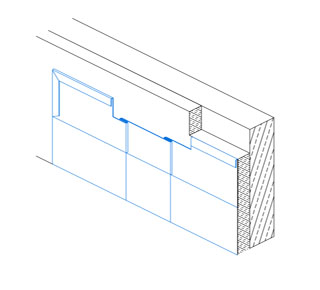

Rectangular Shingles

Plasmet Rectangular Shingles are manufactured in various lengths and widths designed to provide a distinctive, cost effective, economical cladding façade solution suited to both flat and curved geometric building profiles.

Available as large-format cladding elements, rectangular shingles provide economic and quick coverage of the building facade.

Click here to view our latest project

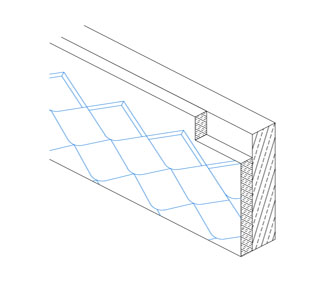

Rhomboid Shingles

Rhomboid style shingles offer a large-format cladding element that provides an economical coverage of the building facade with strong aesthetic appearance.

Rhomboid style shingles are available in both sharp cornered and round cornered designs and in all materials listed above.

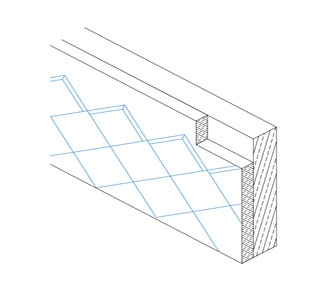

Diamond Shingles

Diamond shaped shingles provide a distincive looking façade design solution, ideally suited for complex geometric building profiles due to the small size of individual components.

Please contact our sales team for further information on all our shingle systems.
